Your Space Assets at Full Capacity

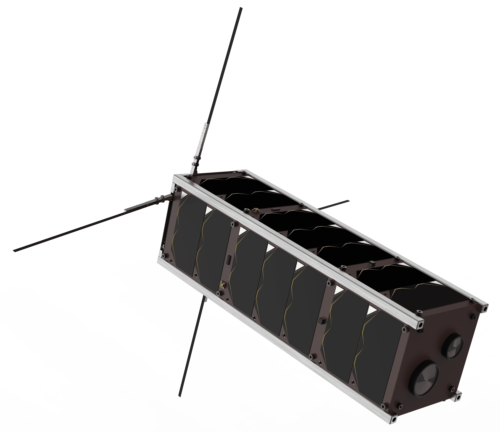

ODALISS is a complete High-Performance Nanosatellite Platform with optical communications, including every subsystem you need to turn your space mission into reality.
The ODALISS nanosatellite platform is based on a high-performance and multi-protocol logic bus allowing Data Intensive payloads to be connected in a scalable architecture. ODALISS internal bus include a rich set of logic interfaces and power lines (regulated and unregulated) to fulfil the most demanding applications.
- DATA INTENSIVE APPLICATIONS: high performance architecture with optical communications downlink.
- SIGNAL INTEGRITY: Double 80 pins-rugged backplane designed for high-speed.
- FLEXIBILITY: High density backplane offering a rich logic interface designed for the most demanding payloads.
- FOCUS ON YOUR MISSION AND PAYLOADS, thanks to its integrated avionics.
- FACE THE MOST COMPLEX CHALLENGES, with the support of our highly experienced team.

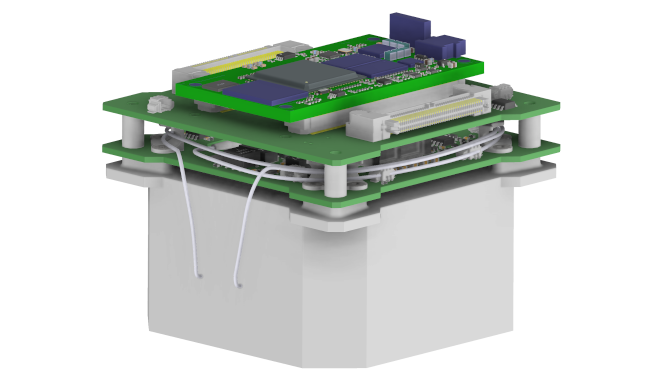

The ODALCOM optical transceiver is a small and compact optical communications unit designed to offer high data rate communications in the infrared C band. Specifically designed for Smallsat platforms that must implement on board Data-Intensive payloads.
- Transceiver logic based in Xilinx Zynq-7000 SoC. Flexible protocol implementation.
- Includes Ethernet, UARTs, RS-485, I2C interfaces.
- Satellites in LEO. Orbital altitude: 650Km.
- Nominal Optical Power transmission: 200mW (23 dBm).
- Maximum Optical Transmission Power: 1W (30 dBm).
- Coarse pointing angular beam steering range: 15º (±7.5º).

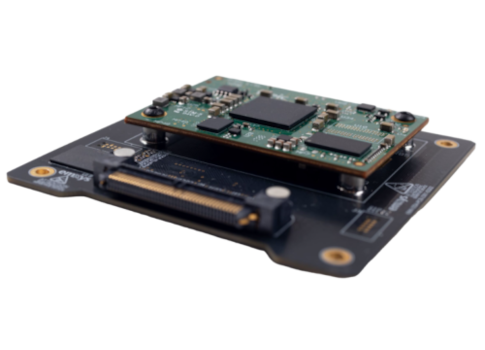

ODALISS DIPP is a compact embedded computer designed to offer the highest computational performance for the most challenging applications.
- Versatile architecture based on Xilinx® Zynq® -7000 SoC, supporting flexible software configuration such as multiprocessing capabilities on Linux along with low-level software, like bare-metal drivers or RTOS
- Ethernet connection capable to meet the highest data processing requirements for data-intensive payloads, such as Earth Observation Cameras, Software Defined Radios (SDR), scientific instruments, etc.
- FPGA fabric can be reconfigured in Run-Time by processor to increase the digital processing capability of the system.
- Rich set of communication peripherals, including Ethernet, UARTs, RS-485, I2C, USB ports along with GPIOs.

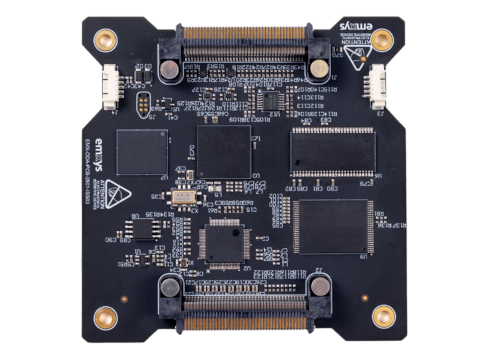

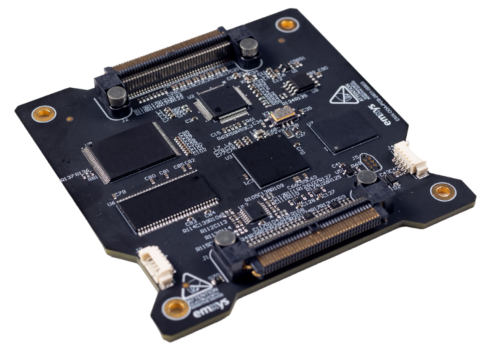

ODALISS OBC is designed to provide high computational performance with a flexible power consumption in data-intensive space systems such as nanosatellites, microsatellites, or specialized payloads.
- Powerful dual core architecture: Cortex®-M7 (high-performance processing unit), Cortex®-M4 (mission-critical systems control).
- OBC includes a 10/100 Mbps Ethernet switch to seamlessly implement standard Tcp/IP backplane LAN network with up-to 5 nodes.
- Safety-centric architecture including RTC, voltage monitor and watchdog.
- Flexible logic interface (UART, RS-485, I2C, etc.).

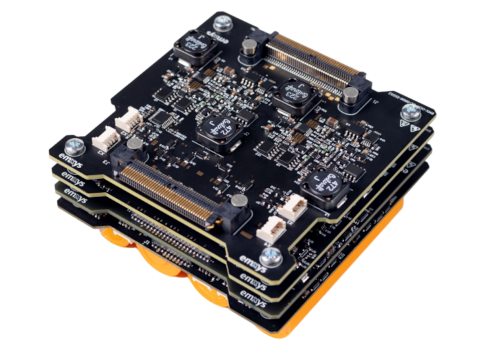

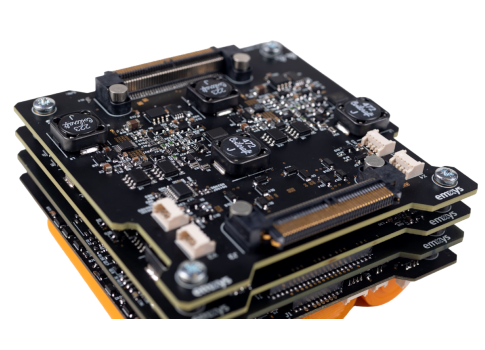

ODALISS PDCU highly efficient electric power unit designed to seamlessly integrate in ODALISS avionics.
- Four Solar Array input power channels.
- Modular Li-Ion battery packs.
- 8W nominal power, 36W Peak Power (per pack for 3U).
- Fully configurable power profile.
- Both Non-Regulated (+7.4V) and Regulated (+5V, +3.3V) Buses.
- Safety +3.3V Regulated Bus for critical power application.
- Battery overvoltage and undervoltage protections.

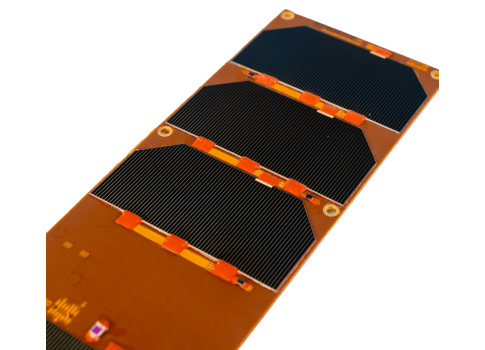

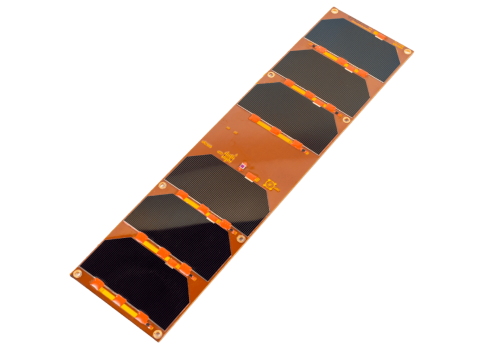

3U/6U SOLAR PANELS
Highly efficient solar panel equipped with the latest triple junction technology and including integrated temperature and Sun sensors.
- Cell efficiency higher than 29%.
- Up to 8.2W in LEO (3U).
- Flexible Series/Parallel configurations.
- Silicon By-Pass diode for reverse bias protection.
- Polyimide substrate for passive thermal control.
- Fully 3U/6U CubeSat platform compatible and configurable upon customer request.

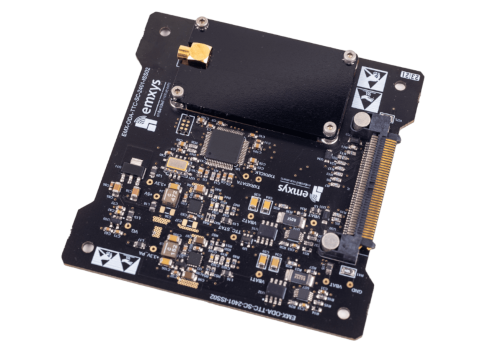

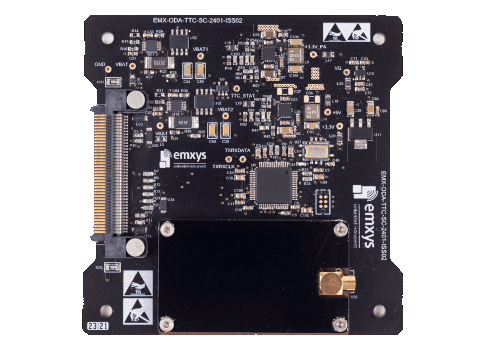

ODALISS TTC is an embedded radio communication module for CubeSats, based in a fully configurable integrated half-duplex VHF/UHF transceiver and, designed to simplify space to ground communication links.
- Powered by Cortex®M4 CPU, with a wide set of commands providing configuration flexibility.
- Fully remote configurable capability.
- High reception sensitivity and transmission power.
- Redundant configuration possibility for increased reliability.
- Nominal mode: non-proprietary protocol based on radio packets as AX.25.
- Beacon Automatic mode: periodic beacons using 2FSK Radioteletype (RTTY).

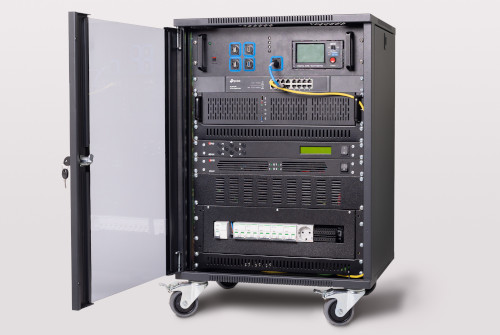

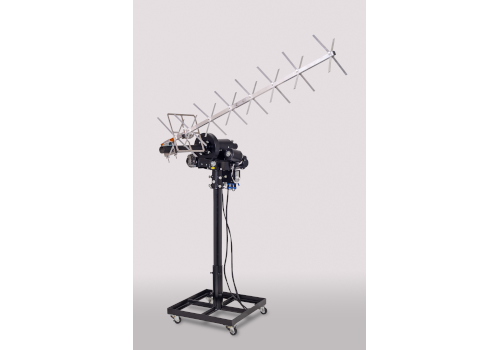

The Emxys Ground Station (EGS) is a terrestrial radio station for satellite communications with the main transceiver based on an embedded computer connected to a software defined radio (SDR) device covering most satellite bands including UHF, VHF and S bands.
- SDR over Ethernet that will allow to connect to a local Network able to be configured using a 16-port switch in order to work on the Network layer from the Open System Interconnection (OSI).
- Open-source COSMOS software included for telemetry and telecommand.
- Open-source Gpredict software included for satellite tracking and for rotor control.
- Local network implemented to receive/transmit data and receive RF samples.
- Connection system implemented by TCP/IP protocol with Ethernet gigabit switch.
